TRACK PROFILE 2D DRAWINGS (RFA & DWG)

PLEASE NOTE - These drawings are specific to HALLMARK cavity sliders only and are not suitable for alternative brands of slider or pocket door. To ensure accuracy, specify Hallmark cavity sliders only if these drawings are used.

Click on profile type below to jump to drawing

Single 90mm Stud

Standard Height - CAVZERO - Architrave

Standard Height - CAVZERO - Plasterboard Grooved

Standard Height - CLASSIC - Architrave

Standard Height - CLASSIC - Plasterboard Grooved

Plasterboard Return - CAVZERO

Full Height Flush Ceiling Finish - CAVZERO

Single 140mm Stud

Standard Height - CAVZERO - Architrave

Standard Height - CAVZERO - Plasterboard Grooved

Standard Height - CLASSIC - Architrave

Standard Height - CLASSIC - Plasterboard Grooved

Plasterboard Return - CAVZERO

Full Height Flush Ceiling Finish - CAVZERO

Double Stacking 140mm Stud

Standard Height - CAVZERO - Architrave

Standard Height - CAVZERO - Plasterboard Grooved

Standard Height - CLASSIC - Architrave

Standard Height - CLASSIC - Plasterboard Grooved

Wall Mounted Sliders

Face Mounted Sliders - Angled Top

Face Mounted Sliders - Flat Top

Aluminium Jamb - Flush Plaster Finish

Parallel Wall - 90mm

Plasterboard Return - 90mm

Plasterboard Return - 140mm

Right Angle Wall - 90mm

Right Angle Wall - 140mm

Single 90mm Stud

106

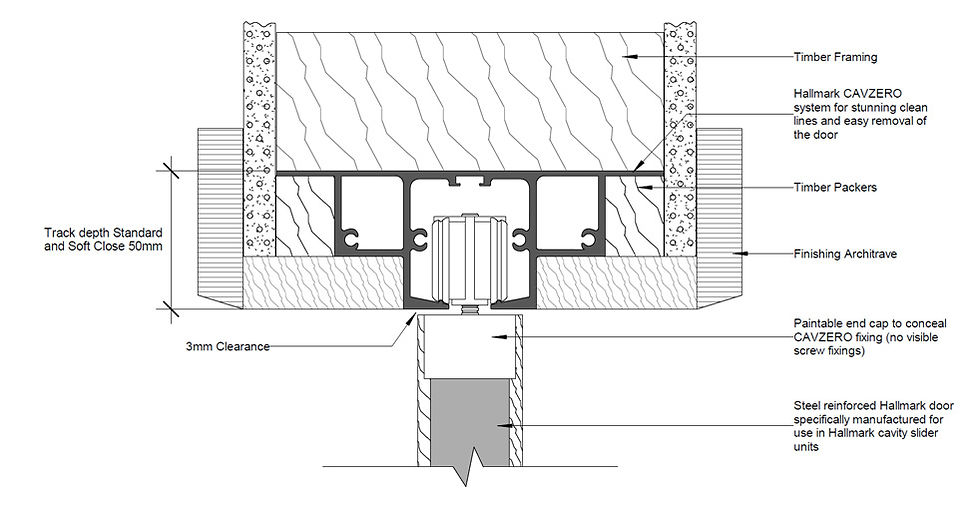

Standard Height CavZero 90mm Stud - Architrave

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

107

Standard Height CavZero 90mm Stud - Plasterboard Grooved

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

104

Standard Height Classic 90mm Stud - Architrave

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

105

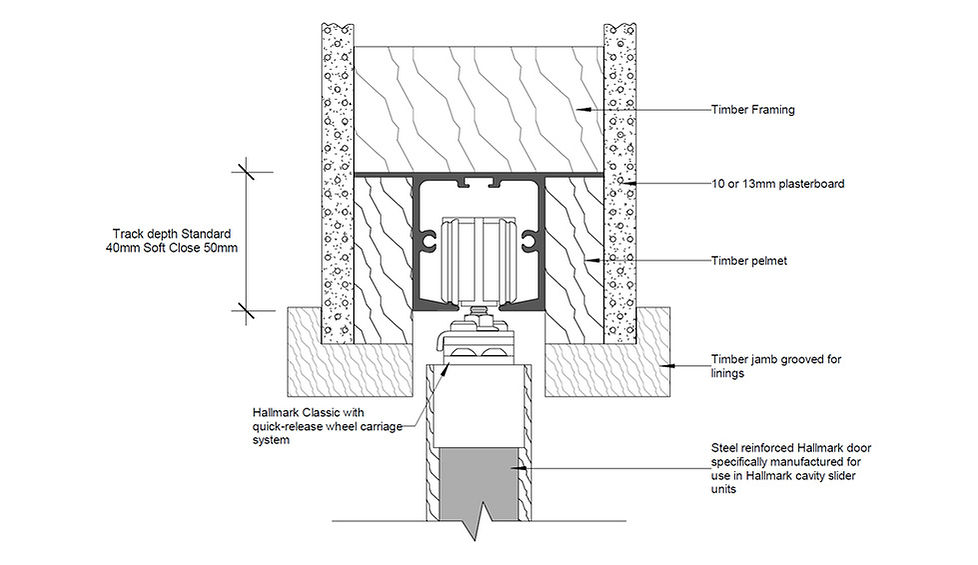

Standard Height Classic 90mm Stud - Plasterboard Grooved

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

103

Plasterboard Return CavZero 90mm Stud

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

101-1

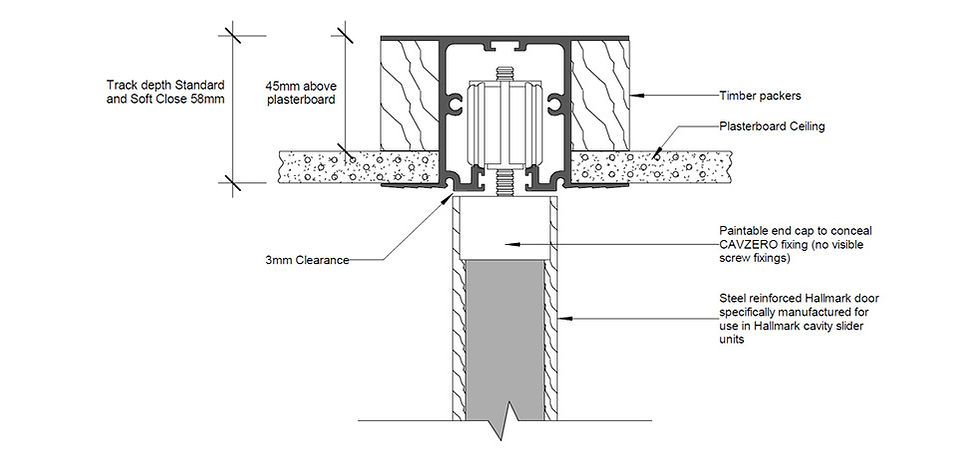

Full Height Flush Ceiling CavZero 90mm Stud

Option 1

Option 2

Option 2

101-2

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

Single 140mm Stud

112

Standard Height CavZero 140mm Stud - Architrave

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

113

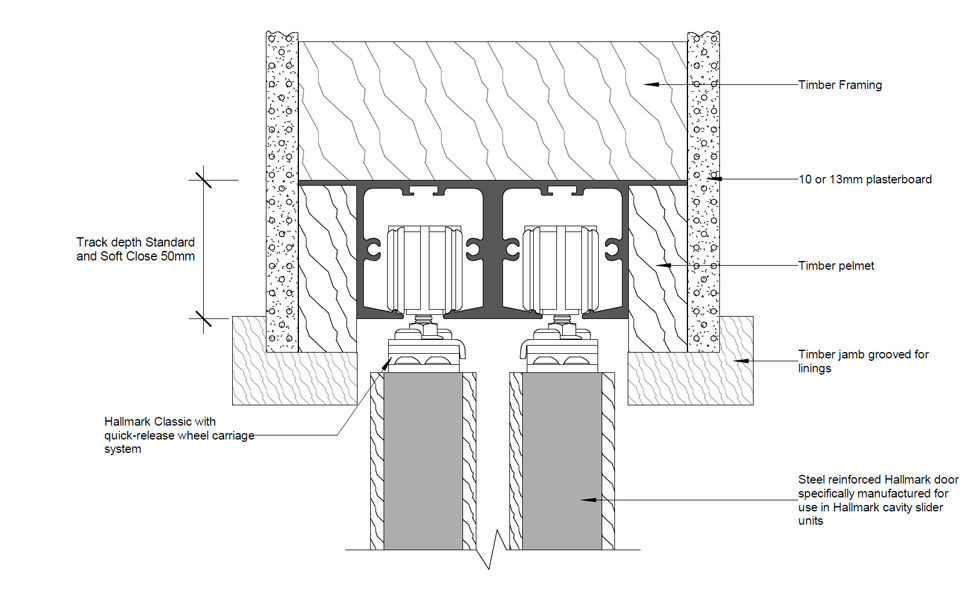

Standard Height CavZero 140mm Stud - Plasterboard Grooved

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

114

Standard Height Classic 140mm Stud - Architrave

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

115

Standard Height Classic 140mm Stud - Plasterboard Grooved

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

111

Plasterboard Return CavZero 140mm Stud

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

108

Full Height Flush Ceiling CavZero 140mm Stud

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

Double Stacking 140mm Stud

116

Standard Height CavZero 140mm Stud - Architrave

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

117

Standard Height CavZero 140mm Stud - Plasterboard Grooved

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

109

Standard Height Classic 140mm Stud - Architrave

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

110

Standard Height Classic 140mm Stud - Plasterboard Grooved

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

Wall Mounted Sliders

130

Face Mounted Slider - Angled Top

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

131

Face Mounted Slider - Flat Top

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

Aluminium Jambs - Flush Plaster Finish

122

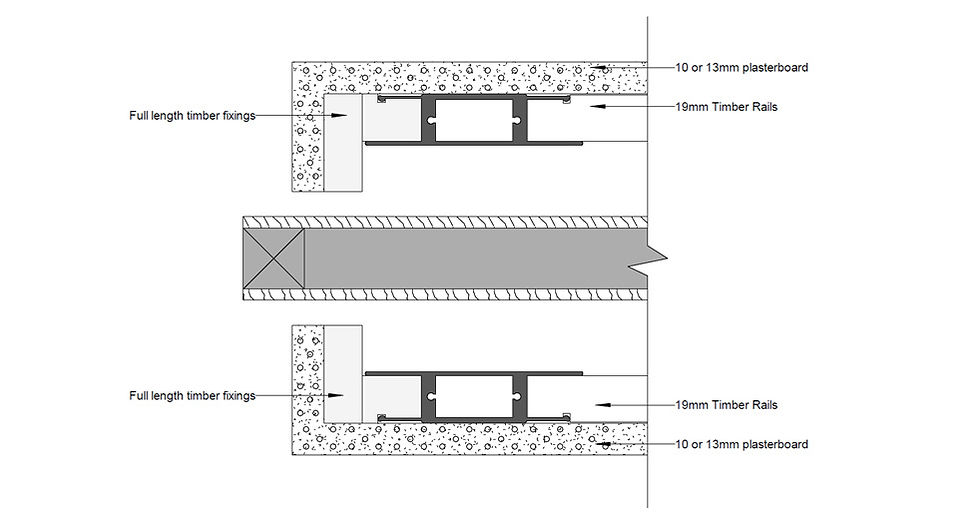

Parallel Wall - 90mm Stud

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

124

Plasterboard Return - 90mm Stud

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

125

Plasterboard Return - 140mm Stud

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

126

Right Angled Wall - 90mm Stud

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

127

Right Angled Wall - 140mm Stud

(These links take you to our Google Drive - it will say 'no preview available' but ignore that, just hit the blue button to download the file)

All 90mm stud units have 48mm openings as standard. 140mm stud units have 48mm openings as standard but can have custom opening widths to suit thicker doors if required.
Hallmark Cavity Slider Doors up to 2700 x 1210mm are available as 35mm, 38mm, or 40mm thick doors with premium 4.75mm skins.
These profiles are designed to accommodate varying wall linings
